With IE’s SmartCenter™ platform and line of integrated smart components the digital mine of the future has arrived today.
With over a dozen new patents, IE has revolutionized mining safety and productivity with our breakers, ground fault relays and monitors, and couplers, while our SmartCenter™ platform is integrating these products into the digital mine of the future.
IE SmartCenter™ – Powering Global Mining
Circuit Breakers
IE is revolutionizing the mining breaker, with automated MV and LV breakers meeting MSHA requirements for built in visual disconnects and grounding. Draw-out and other options create operational flexibility and reduce downtime, with built-in safety features like remote operability and visual disconnects.
- MV Mining breakers with built in visual disconnect – offerings in both 15KV and 25KV classes

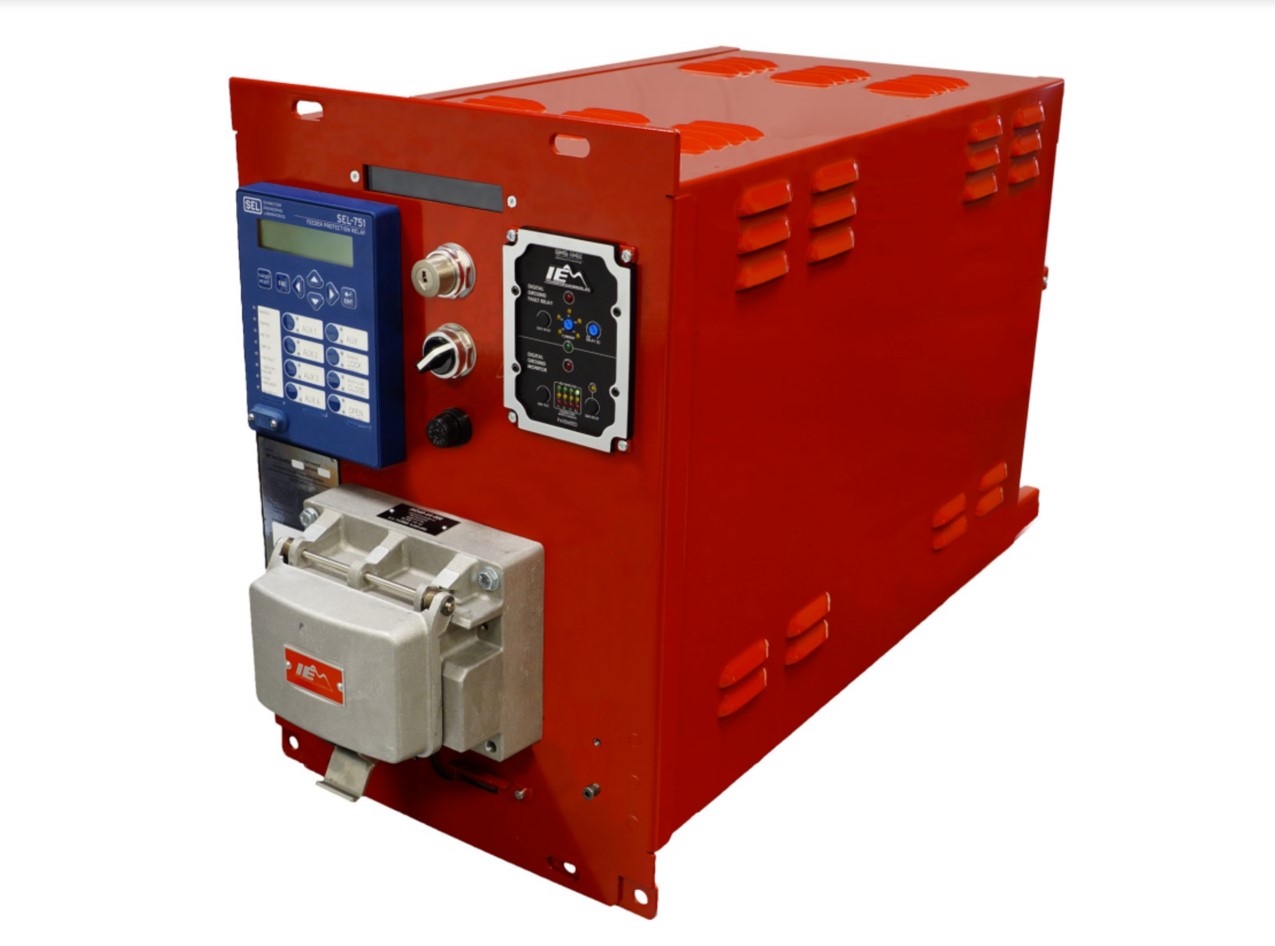

- 1KVDO breaker offers draw-out functionality in an automatic (remote operable) 1000V 600A rating, with vacuum contactor and protection relay.
- Replacement MV and LV power and molded case breakers
- 1KVDO – 1000V, 600A draw-out breaker
- Utilizes contactor plus fuses for overcurrent and short-circuit protection
- Up 50 KAIC short circuit protection
- Racted for 10,000 operations
- IE175VB (17.5 kV Vacuum Circuit Breaker) with built-in visual disconnect
- 17.5 kV, 1250A Continuous rating
- 25kA Interrupting Rating, 95 kV BIL
- Available with UVR or Shunt Trip Auxiliaries
- IE270VB (27 kV Vacuum Circuit Breaker) with built-in visual disconnect
- 27 kV, 600A Continuous rating
- 16 kA Interrupting Rating, 125 kV BIL
- Available with UVR or Shunt Trip Auxiliaries
⚠ Module cannot be rendered as the requested content is not (longer) accessible. Contact the administrator to get access.
Ground Monitors and Relays
IE’s complete line of ground monitors and relays, which brings modern technology to a landscape full of 1970s technology, offers improvements in dependability and uptime, functionality, and connectivity.
- Multiple Ground Fault relays including Sensitive Ground fault relays / Earth Leakage relays sensitive to 20 milli-Amps.
- Multiple versions of Ground Monitors (Ground Check devices) built on various technology platforms (analog, digital signal processing)
- Diode based systems eliminate parallel paths

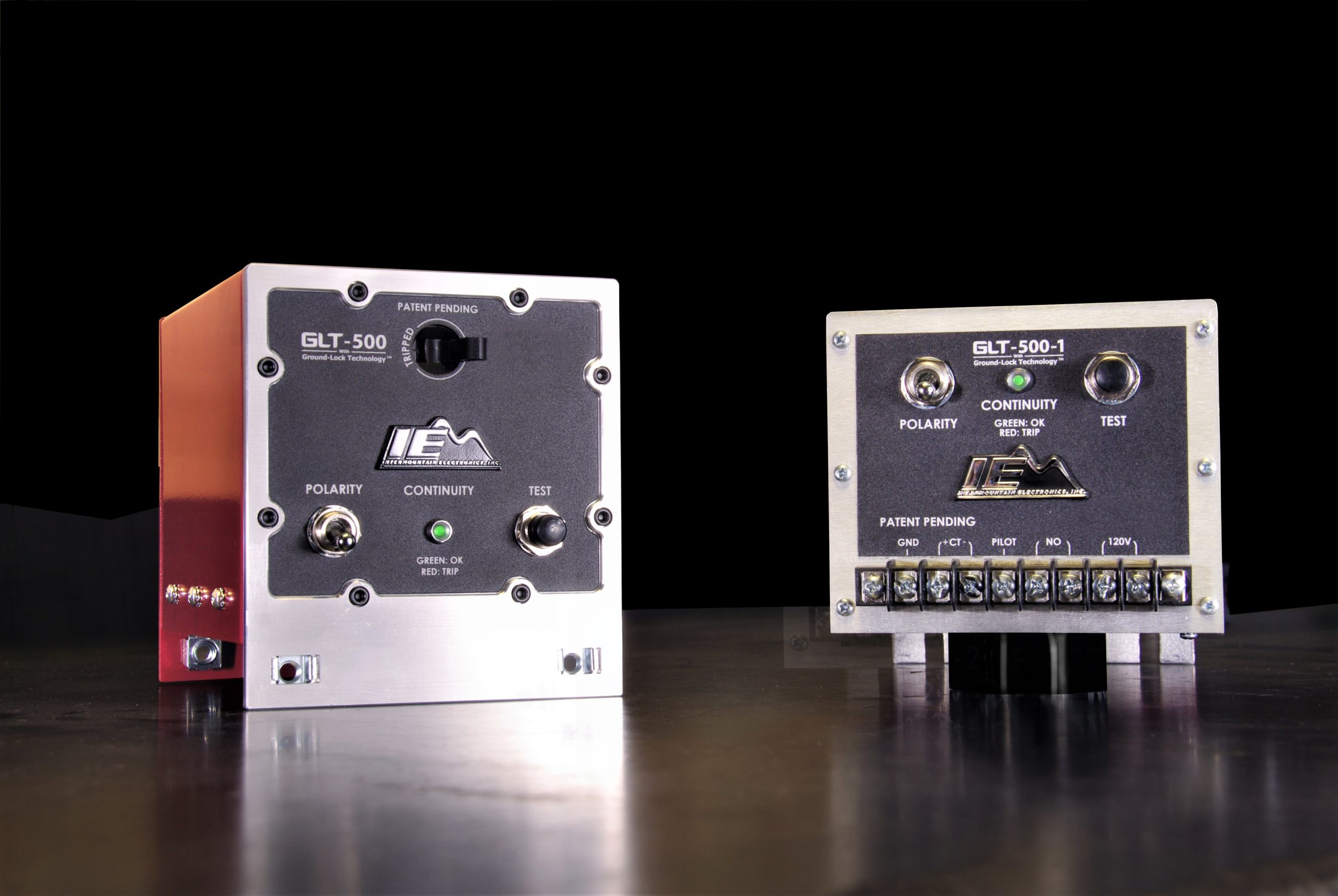

- GLT-500 and associated diode have MSHA approval (only approvals offered to updated code since 1985.
- GMS-504 offers multiple frequency and DC signals to eliminate nuisance tripping; works well with VFDs across all frequency spectrums
- MSHA Certified monitors for up to 5 kV circuits
- HV ground monitors covering up to 15 kV
Ground Monitors and Accessories
⚠ Module cannot be rendered as the requested content is not (longer) accessible. Contact the administrator to get access.
Ground Fault Relays
⚠ Module cannot be rendered as the requested content is not (longer) accessible. Contact the administrator to get access.
Miscellaneous Electronic Mining Components
IE offers a wide range of voltage sensing devices and indicators, functioning from 120V to 15 kV. We also offer a complete range of capacitor trip devices and other energy storage devices to safely operate breakers in the event of a power outage.
- Best in class safety products including voltage monitors, and indicators and capacitor trip devices
- High voltage monitor with light and sound indicators for voltage indication up to 15 kV; Live Line Indicator (LLI) for 120V-600V applications

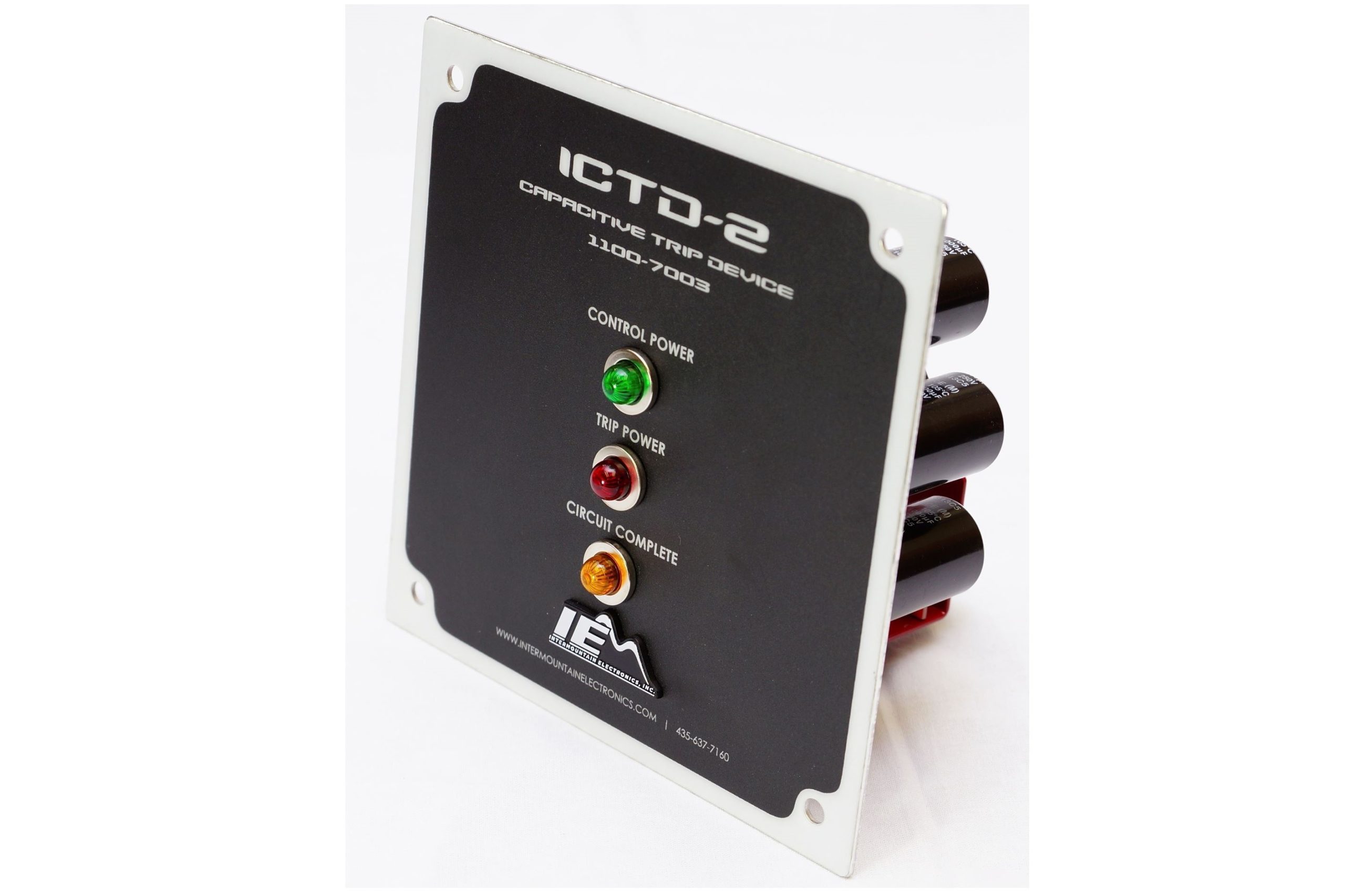

- Various Capacitor trip devices (CTDs) including best-in-class ICTD 2 with 6000 uF of storage capacity
- Typical storage time of up to 40 seconds, while charging in less than one second
- UVR test button for safe discharge
- TBD

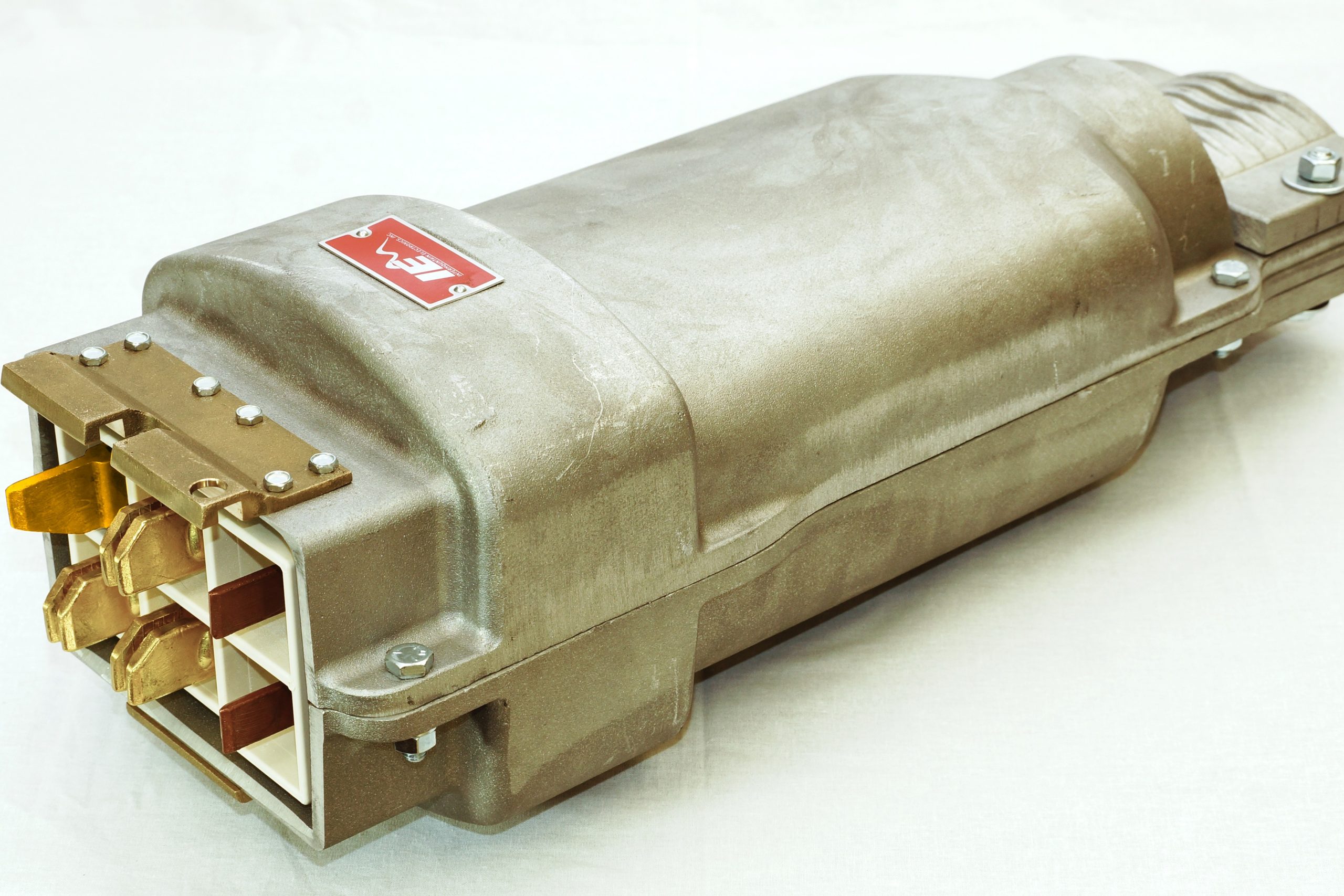

Couplers and Connectors
Our line of LV plugs and receptacles, rated up to 600A, set the industry standard in terms of safety and ease of use. We offer a range of cable glands and MV connectors as well rated up to 25 kV, and multiple specialty power and communication cables and connector assemblies.
- LV plus and receptacles rated for 1000V and up to 600A continuous
- Removable two-piece insulator for easy field replacement/maintenance
- Hands free kick-flip covers
- Configurable for multiple grounds and pilot wires
- IRG 30 / IPL 30 – 300A rated for up to 4/O cables
- IRG 60 / IPL 60 – 600A rated for up to 500 MCM cables
⚠ Module cannot be rendered as the requested content is not (longer) accessible. Contact the administrator to get access.

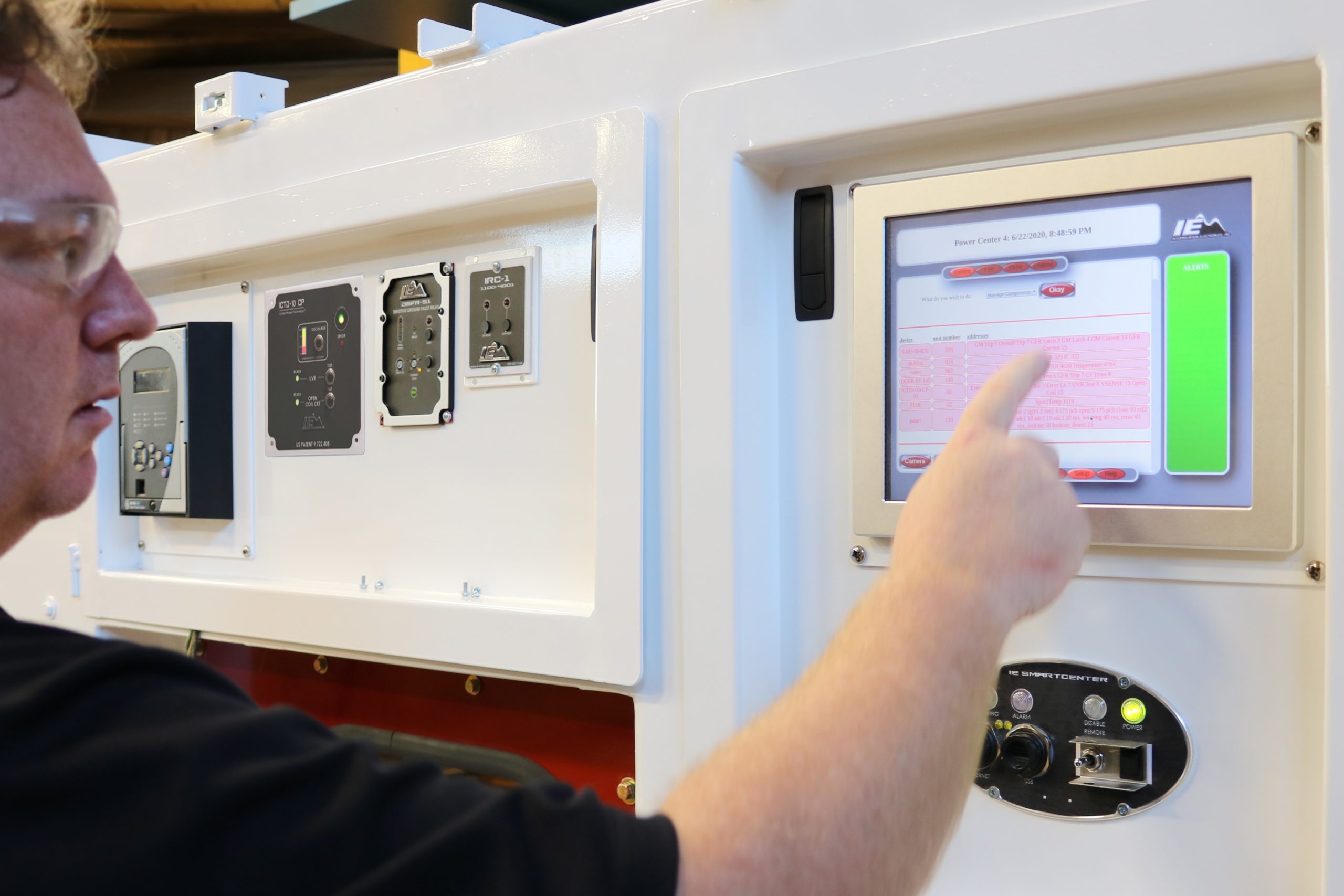

IE SmartCenter™ / Digital Mine
The “Internet of Things” (IoT) is transforming the power at your fingertips in everything from your home thermostat to your vehicle’s center console. IE’s SmartCenter™ now brings that same connectivity to your power distribution system, while keeping everything as simple as your smartphone app.
- IoT functionality – remote monitoring and remote control of electrical components
- Cheaper and simpler than PLCs, with built in, pre-programmed functionality
- Standardized User Interface (UI) and home screens for “app” like handling and ease of use
- TBD
