At IE Corp, we build and deliver customized PDU solutions to meet your exact requirements.
PDUs

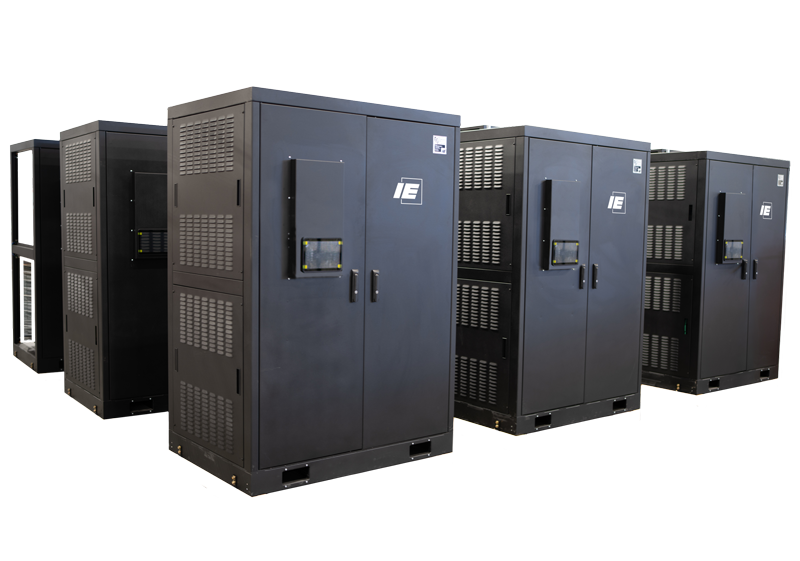

Our modular solutions adapt to changing power demands, feature revenue-grade metering, and offer a smaller footprint for space-constrained environments. With a streamlined manufacturing process, we deliver the power you need—when and where you need it.
Key Features
Customized Design
SmallerFootprint
Superior Quality and Reduced Lead Times

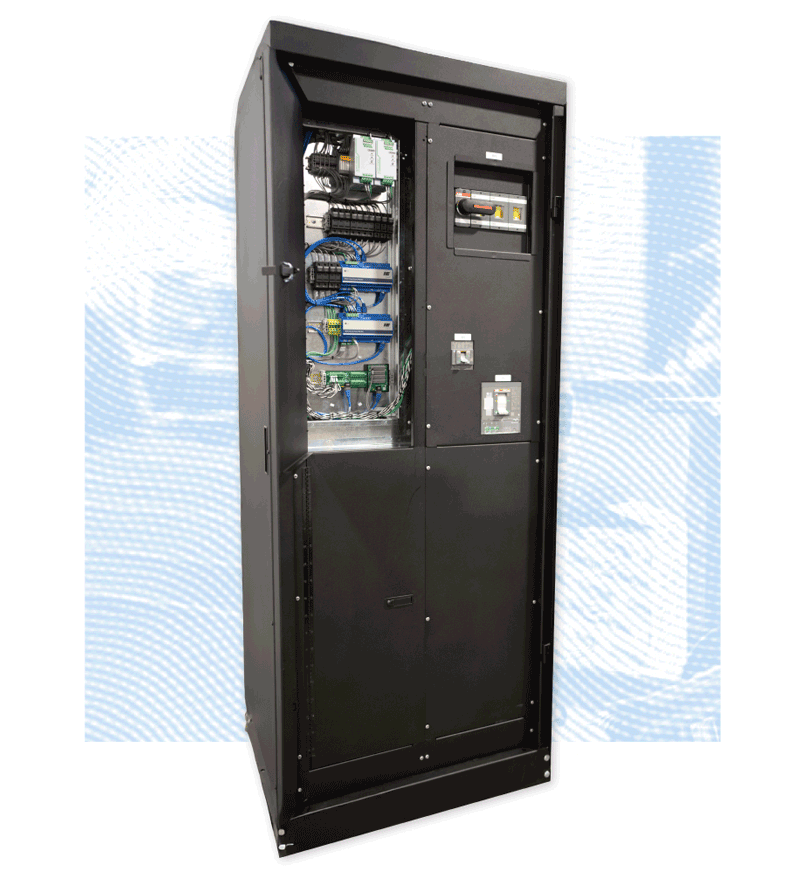

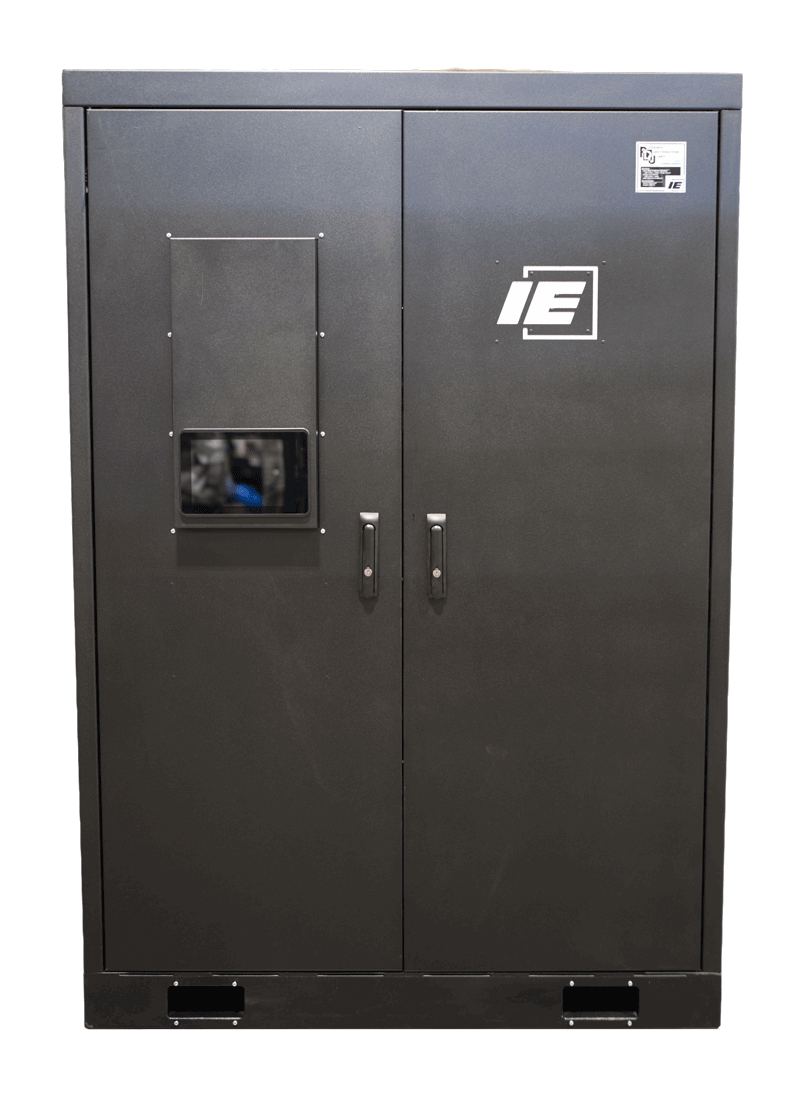

IE Corp’s Mission-Critical PDUs
Built to Customers’ Specifications
- Dimensions, color, subfeed breakers, and metering all built to suit
Touchscreen HMI
- Local data aggregated in one HMI user interface
- 10.1” display with 1280×800 resolution, OR
- 15.6” display with 1920 x 1080 resolution
RSE Software Suite
- Proprietary and custom-developed
- Built on a robust, secure, enterprise-grade platform
- Built-in, fully configurable firewall to control network access
Add-On Options
- Infrared windows and thermal imaging
PDU
| Model | 1080-00XX |
|---|---|
| Dimensions | *To customer specs |
| Standards | UL891, UL1561, IEC61439 |
| Seismic Rated | Yes |
| Rating | 200% neutral when required |
| Subfeed Breakers | *To customer specs |
| Powder-Coated Finish | *To customer color |
| Metering | *To customer specs |
| Surge-Protection Devices | *To customer specs |
| Models | 50/60 Hz |
| Input Voltage |
480 VAC/65 kA typical (other options available) All models UL Listed for North American markets Some EU listed for European markets |
| Output Voltage | 415 Y/240 VAC or 208 Y/120 VAC |
| kVA Ratings | 100-1000 kVA available |
| HOT-SHOT Thermal Imaging | *Optional |
